Specifications

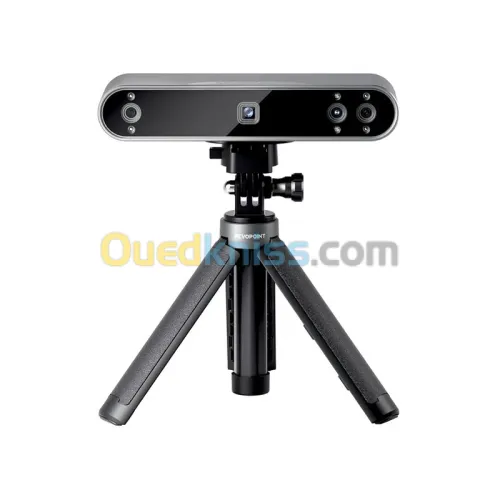

Product Name Revopoint POP 3
Technology Dual-camera Infrared Structured Light
Single-frame Accuracy, up to 0.1 mm
Single-frame Precision, up to 0.05 mm
Scanning Speed，up to 18 fps
Fused Point Distance, up to 0.05 mm
Single Capture Area at Nearest Distance 61 x 68 mm at 150 mm
Single Capture Area at Furthest Distance 244 x 180 mm at 400 mm
Scanning Type Handheld and Desktop
Working Distance 150 ~ 400 mm
Minimum Scan Volume 20 x 20 x 20 mm
Maxmium Scan Volume 2 x 2 x 2 m
Auxiliary Lighting Infrared Fill Lights, White Flash LEDs
Angular Field of View, H x W 40 x 25°
CPU 2 core, 1.6GHz
Position Sensors 9-axis IMU
Scanner Weight 190 g
Dimensions（L x W x H）153 x 45 x 29 mm
Tracking Methods Feature , Marker
Buttons 3
Connector Type USB Type-C
Power Requirements DC 5V, 1A
Wi-Fi Type Wi-Fi 6
Bluetooth 4.1
Compatible Operating Systems Windows 10/11 (64-bit), Andriod, iOS, macOS
Recommended PC Requirements Intel Core i7, 16 GB RAM or better
Special Object Scanning Use scanning spray for transparent, dark, or highly reflective objects
Scanning Environment Indoors and Outdoors
Output File Formats PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Ready to Print 3D Models Yes
PC Requirements (macOS)
RAM: ≥8GB
CPU (or better):
M1 Pro/M1 Max/M1 Ultra
M2/M2 Pro/M2 Max/M2 Ultra
M3/M3 Pro/M3 Max
PC Requirements (Windows)
RAM: ≥16GB
CPU (or better):
i5 12th/13th/14th
i7 12th/13th/14th
i9 all series
Product Name Revopoint POP 3
Technology Dual-camera Infrared Structured Light
Single-frame Accuracy, up to 0.1 mm
Single-frame Precision, up to 0.05 mm
Scanning Speed，up to 18 fps
Fused Point Distance, up to 0.05 mm
Single Capture Area at Nearest Distance 61 x 68 mm at 150 mm
Single Capture Area at Furthest Distance 244 x 180 mm at 400 mm
Scanning Type Handheld and Desktop
Working Distance 150 ~ 400 mm
Minimum Scan Volume 20 x 20 x 20 mm
Maxmium Scan Volume 2 x 2 x 2 m
Auxiliary Lighting Infrared Fill Lights, White Flash LEDs
Angular Field of View, H x W 40 x 25°
CPU 2 core, 1.6GHz
Position Sensors 9-axis IMU
Scanner Weight 190 g
Dimensions（L x W x H）153 x 45 x 29 mm
Tracking Methods Feature , Marker
Buttons 3
Connector Type USB Type-C
Power Requirements DC 5V, 1A
Wi-Fi Type Wi-Fi 6
Bluetooth 4.1
Compatible Operating Systems Windows 10/11 (64-bit), Andriod, iOS, macOS
Recommended PC Requirements Intel Core i7, 16 GB RAM or better
Special Object Scanning Use scanning spray for transparent, dark, or highly reflective objects
Scanning Environment Indoors and Outdoors
Output File Formats PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Ready to Print 3D Models Yes
PC Requirements (macOS)
RAM: ≥8GB
CPU (or better):
M1 Pro/M1 Max/M1 Ultra
M2/M2 Pro/M2 Max/M2 Ultra
M3/M3 Pro/M3 Max
PC Requirements (Windows)
RAM: ≥16GB
CPU (or better):
i5 12th/13th/14th
i7 12th/13th/14th
i9 all series
