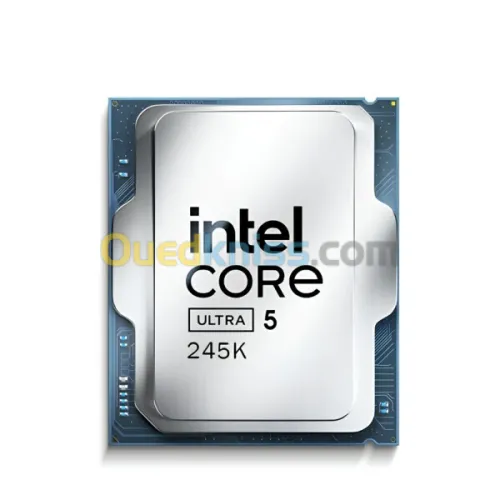

The Intel® Core™ Ultra 245K Processor, part of the Intel® Core™ Ultra Series 2 (formerly known as Arrow Lake), is a high-performance desktop processor designed to deliver exceptional processing power and advanced AI capabilities. Here’s an overview of the specifications:
Key Specifications:
Processor Number: 245K
Total Cores: 14 (6 Performance-cores, 8 Efficient-cores)
Total Threads: 14
Base Frequency:
Performance-core: 4.2 GHz
Efficient-core: 3.6 GHz
Max Turbo Frequency:
Performance-core: 5.2 GHz
Efficient-core: 4.6 GHz
Intel® Smart Cache: 24 MB
L2 Cache: 26 MB
Processor Base Power: 125 W
Max Turbo Power: 159 W
Intel® Deep Learning Boost: Yes
CPU Lithography: TSMC N3B (advanced node)
Launch Date: Q4 2024
Price: $309.00 - $319.00
Memory Specifications:
Max Memory Size: 192 GB (depending on memory type)
Memory Types: Up to DDR5 6400 MT/s
Maximum Memory Speed: 6400 MHz
ECC Memory: Supported
GPU Specifications:
GPU Name: Intel® Graphics
Base Frequency: 300 MHz
Max Dynamic Frequency: 1.9 GHz
Peak TOPS (Int8): 8
Xe-cores: 4
Max Resolution:
HDMI: 4K @ 60Hz, 8K @ 60Hz
DP: 8K @ 60Hz
eDP (Integrated Panel): 4K @ 60Hz
DirectX Support: 12
OpenGL Support: 4.5
OpenCL Support: 3
Intel® Quick Sync Video: Yes
Displays Supported: Up to 4
Intel® Deep Learning Boost (on GPU): Yes
NPU (Neural Processing Unit) Specifications:
NPU Name: Intel® AI Boost
NPU Peak TOPS (Int8): 13
Sparsity Support: Yes
Windows Studio Effects Support: Yes
Supported AI Frameworks: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
Expansion Options:
PCI Express Revision: 5.0 and 4.0
Max PCI Express Lanes: 24
Thunderbolt™ 4: Yes
DMI Revision: 4
Max DMI Lanes: 8
Thermal & Power:
Thermal Solution Specification: PCG 2020A
Max Operating Temperature: 105°C
Advanced Technologies:
Intel® Thread Director: Yes
Intel® Turbo Boost Technology 2.0: Yes
Intel® Speed Shift Technology: Yes
Intel® Gaussian & Neural Accelerator 3.5: Yes
Intel® Volume Management Device (VMD): Yes
Security & Reliability:
Intel vPro® Eligibility: Intel vPro® Enterprise
Intel® Hardware Shield Eligibility: Yes
Intel® AES New Instructions: Yes
Intel® Trusted Execution Technology: Yes
Intel® Virtualization Technology: Yes (including VT-x, VT-d, VT-x with Extended Page Tables)
Key Specifications:
Processor Number: 245K
Total Cores: 14 (6 Performance-cores, 8 Efficient-cores)
Total Threads: 14
Base Frequency:
Performance-core: 4.2 GHz
Efficient-core: 3.6 GHz
Max Turbo Frequency:
Performance-core: 5.2 GHz
Efficient-core: 4.6 GHz
Intel® Smart Cache: 24 MB
L2 Cache: 26 MB
Processor Base Power: 125 W
Max Turbo Power: 159 W
Intel® Deep Learning Boost: Yes
CPU Lithography: TSMC N3B (advanced node)
Launch Date: Q4 2024
Price: $309.00 - $319.00
Memory Specifications:
Max Memory Size: 192 GB (depending on memory type)
Memory Types: Up to DDR5 6400 MT/s
Maximum Memory Speed: 6400 MHz
ECC Memory: Supported
GPU Specifications:
GPU Name: Intel® Graphics
Base Frequency: 300 MHz
Max Dynamic Frequency: 1.9 GHz
Peak TOPS (Int8): 8
Xe-cores: 4
Max Resolution:
HDMI: 4K @ 60Hz, 8K @ 60Hz
DP: 8K @ 60Hz
eDP (Integrated Panel): 4K @ 60Hz
DirectX Support: 12
OpenGL Support: 4.5
OpenCL Support: 3
Intel® Quick Sync Video: Yes
Displays Supported: Up to 4
Intel® Deep Learning Boost (on GPU): Yes
NPU (Neural Processing Unit) Specifications:
NPU Name: Intel® AI Boost
NPU Peak TOPS (Int8): 13
Sparsity Support: Yes
Windows Studio Effects Support: Yes
Supported AI Frameworks: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
Expansion Options:
PCI Express Revision: 5.0 and 4.0
Max PCI Express Lanes: 24
Thunderbolt™ 4: Yes
DMI Revision: 4
Max DMI Lanes: 8
Thermal & Power:
Thermal Solution Specification: PCG 2020A
Max Operating Temperature: 105°C
Advanced Technologies:
Intel® Thread Director: Yes
Intel® Turbo Boost Technology 2.0: Yes
Intel® Speed Shift Technology: Yes
Intel® Gaussian & Neural Accelerator 3.5: Yes
Intel® Volume Management Device (VMD): Yes
Security & Reliability:
Intel vPro® Eligibility: Intel vPro® Enterprise
Intel® Hardware Shield Eligibility: Yes
Intel® AES New Instructions: Yes
Intel® Trusted Execution Technology: Yes
Intel® Virtualization Technology: Yes (including VT-x, VT-d, VT-x with Extended Page Tables)
