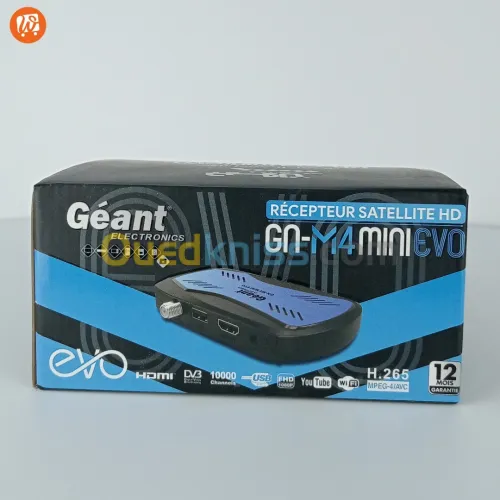

GEANT GN-M4 MINI EVO
SPECIFICATION
PRODUCT TYPE
DVB-S/S2 HD Receiver
Processor and Memory Chipset S5H
CPU 32bit CK610M CPU with MMU
Flash 8MByte SPI NOR Flash
SDRAM Built-in 128MB 16-bit DDR3 SDRAM
DVB-S2 DEMOD DVB-S [EN300 421], DVB-S2 [EN302 307]
QPSK/8PSK/16APSK/32APSK
DVB-S/DVB-S2 Demodulator compliant and Channel decoder compliant with EN300421/EN302307-2
DiSEqCTM receive/transmit for the control of LNB, dish and oth
Interfaces TUNER S2 Tuner in
earphone AV connector left /right audio channel , compositive video
HDMI HD output connector HDMI transmitter
USB 2.0 1*USB2.0 Host
1 DC power input connector 12V/1A
General Features Operation System ECOS
Power consumption
Working power consumption ：Less than 12W
Network Support USB 3G
Support USB wifi
Storage
USB2.0
High-speed and Full-speed devices supported, PVR is
supported
supported all kind of storage 、recording and playing
Graphics and display 2D/3D upscale/downscale function
Support Gaussian blur
Simultaneous HD & SD outputs
Multi-layer input and alpha blending
Video /Audio Decoder H265 video (HEVC/H.265), BP/MP/HP up to L4.0
H.264 video (ISO/IEC 14496-10), BP/MP/HP up to L4.1
MPEG-4 video (ISO/IEC 14496-2), SP/ASP up to L5
Dolby AC3/DD+(optional)
Single channel, dual channel, stereo, and joint stereo modes supported
SPECIFICATION
PRODUCT TYPE
DVB-S/S2 HD Receiver
Processor and Memory Chipset S5H
CPU 32bit CK610M CPU with MMU
Flash 8MByte SPI NOR Flash
SDRAM Built-in 128MB 16-bit DDR3 SDRAM
DVB-S2 DEMOD DVB-S [EN300 421], DVB-S2 [EN302 307]
QPSK/8PSK/16APSK/32APSK
DVB-S/DVB-S2 Demodulator compliant and Channel decoder compliant with EN300421/EN302307-2
DiSEqCTM receive/transmit for the control of LNB, dish and oth
Interfaces TUNER S2 Tuner in
earphone AV connector left /right audio channel , compositive video
HDMI HD output connector HDMI transmitter
USB 2.0 1*USB2.0 Host
1 DC power input connector 12V/1A
General Features Operation System ECOS
Power consumption
Working power consumption ：Less than 12W
Network Support USB 3G
Support USB wifi
Storage
USB2.0
High-speed and Full-speed devices supported, PVR is
supported
supported all kind of storage 、recording and playing
Graphics and display 2D/3D upscale/downscale function
Support Gaussian blur
Simultaneous HD & SD outputs
Multi-layer input and alpha blending
Video /Audio Decoder H265 video (HEVC/H.265), BP/MP/HP up to L4.0
H.264 video (ISO/IEC 14496-10), BP/MP/HP up to L4.1
MPEG-4 video (ISO/IEC 14496-2), SP/ASP up to L5
Dolby AC3/DD+(optional)
Single channel, dual channel, stereo, and joint stereo modes supported
