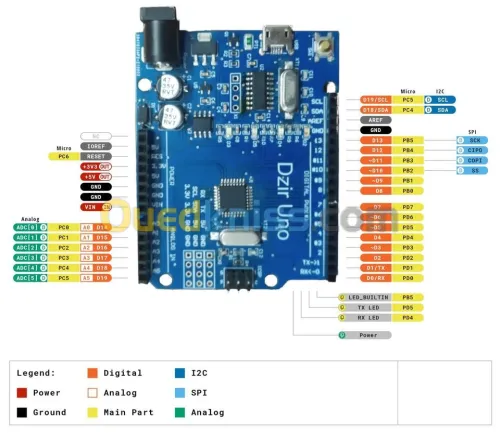

Board Name DzirUno
Microcontroller ATmega328P
USB connector USB Micro B
Pins Built-in LED Pin 13
Digital I/O Pins 14
Analog input pins 6
PWM pins 6
Communication UART Yes
I2C Yes
SPI Yes
Power I/O Voltage 5V
Input voltage (nominal) 7–12V
DC Current per I/O Pin 20 mA
Power Supply Connector Barrel Plug
Clock speed Main Processor ATmega328P 16 MHz
USB-Serial Processor CH340
Memory ATmega328P A2KB SRAM, 32KB FLASH, 1KB EEPROM
Dimensions Weight 25g
Width 53.4mm
Length 68.8mm
الحالة:
Neuf jamais utilisé
الفئات:
أخرى
المنطقة:
الجزائر /
الجزائر
وضع في:
26-02-2025 à 13:29:56
